Mechanical Upenders & Coil Tippers

The Bushman Equipment, Inc. mechanical upender provides an easy and efficient way to upend metal coils, molds, dies and other heavy and bulky loads. Mechanical upenders, sometimes called coil positioners, rotate steel, aluminum & other non-ferrous coils and other loads through 90 degrees. They are used in a variety of production and maintenance applications.

Capacities are available up to 200 tons along with a variety of options.

Mechanical upenders are available in standard configurations or may be custom engineered for your particular application.

Mechanical upenders have a 3/4 round-shaped cradle that is placed on four machined steel rollers. An electric-powered gear motor driving a single or dual chain sprocket provides the ability to rotate.

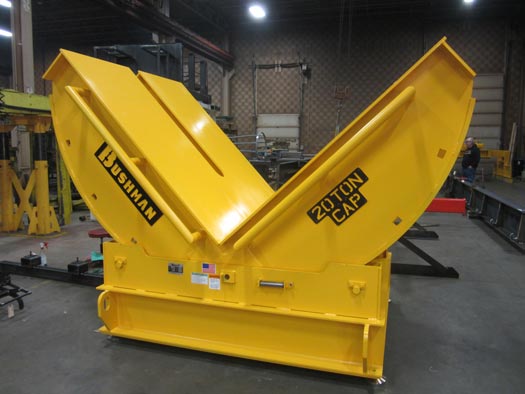

Mechanical Upender

Standard Features

  • Standard upender capacities range from 3,000 to 100,000 pounds.
  • Robust reinforced welded steel construction.

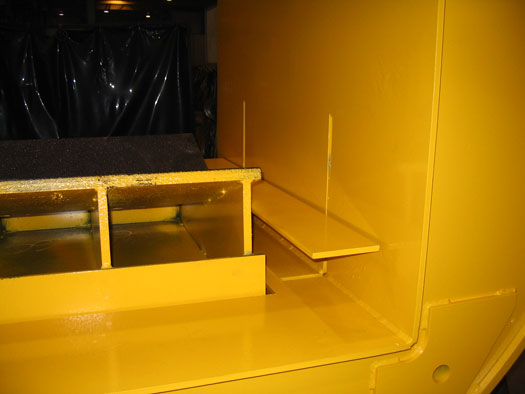

  • Full steel bottom plate.

Mechanical Upender

Left: Single chain
Center: Double chain
Right: Double-wide chain may be used

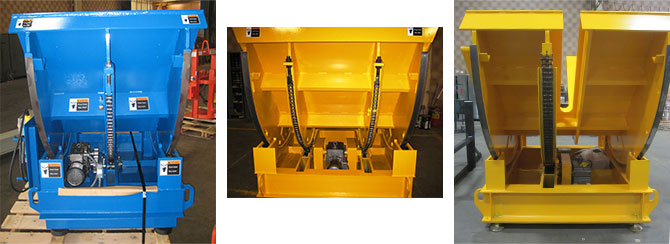

Single or double drive chains dependent on capacity and location of load’s center of gravity.

mechanical upender

Left: Flat tread steel wheel
Right: Fixed axle supported on both sides

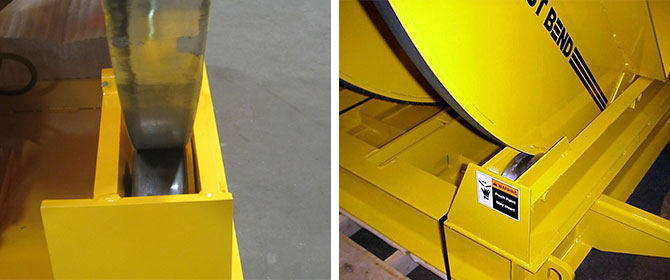

Welded steel trucks with four straight tread, single flanged steel wheels with roller bearings.

Mechanical Upender

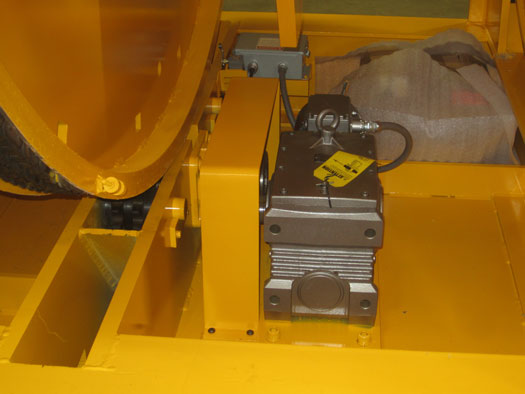

Fully enclosed right angle drive gearbox with single speed motor and disc brake. Output drive open gearset is guarded.

mechanical upender

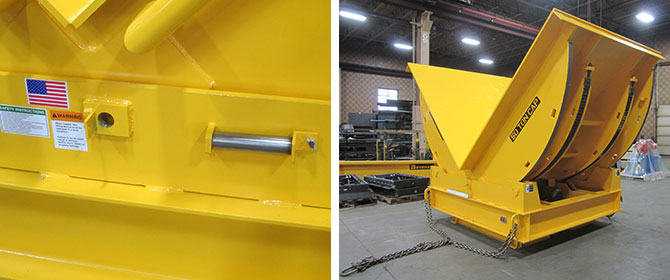

Left: Locking pin for maintenance
Right: Lifting lugs for easy positioning

Upender Platforms

The platforms of the upender cradle not only support the load, but are designed to interface with the handling device that sets or removes the load.

Mechanical Upender

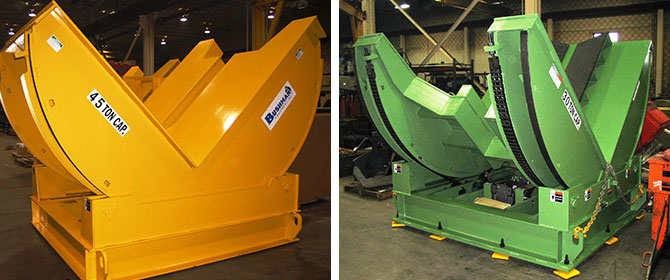

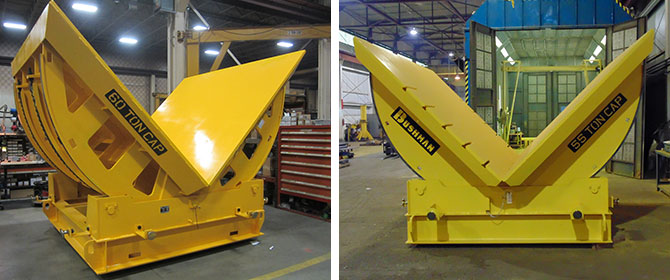

The basic cradle has two flat platforms.

mechanical upender

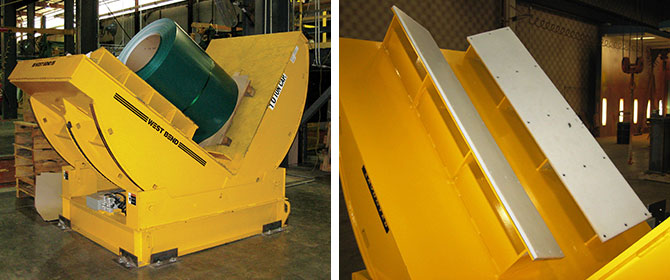

Left: Coil in V-saddle
Right: UHMW pads

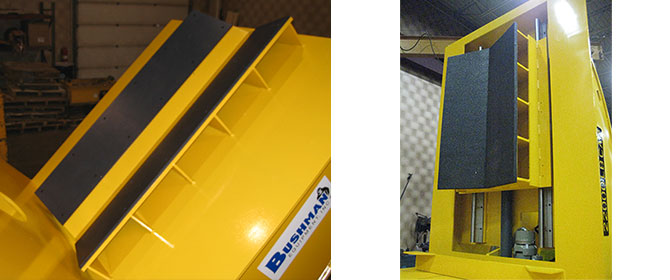

For coil handling, the coil rests on a welded steel V-saddle. The surface of the saddle can be bare steel, or covered with replaceable UHMW or Nylatron pads.

mechanical upender

Left: Nylatron pads
Right: Bonded urethane with motorized V-saddle

A motorized V-saddle (above right) can gently move a coil and snug it up to the pallet before tipping. This prevents the coil from sliding while it is tipped.

Mechanical Upender

A motorized pallet adjuster helps to center the coil when tipping a wide range of coil diameters.

mechanical upender

Left: C-hook slot
Right: Cutout for coil grab

When loading a coil with a crane using a c-hook or motorized coil grab, a slot and/or cutout is needed for interfacing with the upender.

Mechanical Upender

Structural set offs can be used to support uniquely shaped loads.

mechanical upender

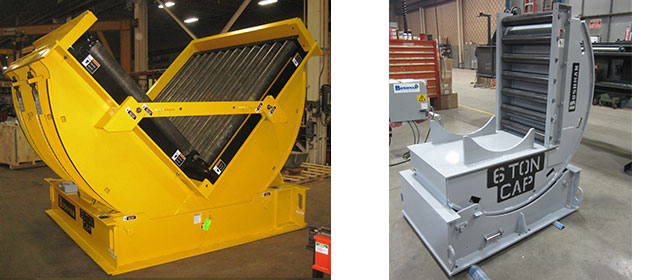

Left: Heavy roller conveyor
Right: Light roller conveyor

Mechanical Upender

Ball transfer rollers

Conveyors & ball transfer rollers may be used to load and unload the upender.

Mechanical Upender

Pit mounted upenders allow the platforms to be flush with the floor to facilitate loading or worker interface.

Mechanical Upender

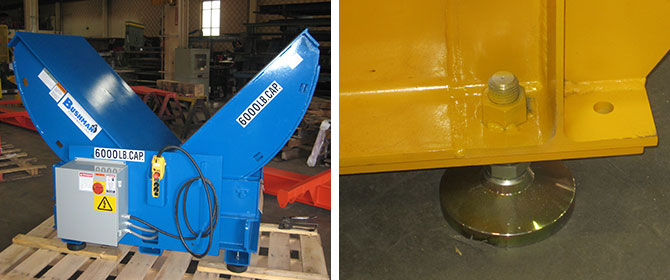

Leveling pads can be provided to ensure a near perfect level platform.

Mechanical Upender

A motorized rotating base is used when loading and unloading with a fork truck. The truck does not have to reposition itself after the load is tipped.

Mechanical Upender

An upender can be mounted onto a weigh system stand.

Custom Upenders

Mechanical Upender

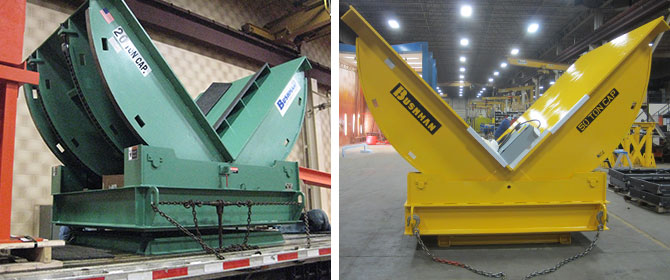

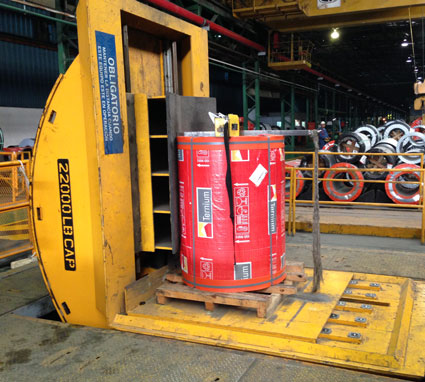

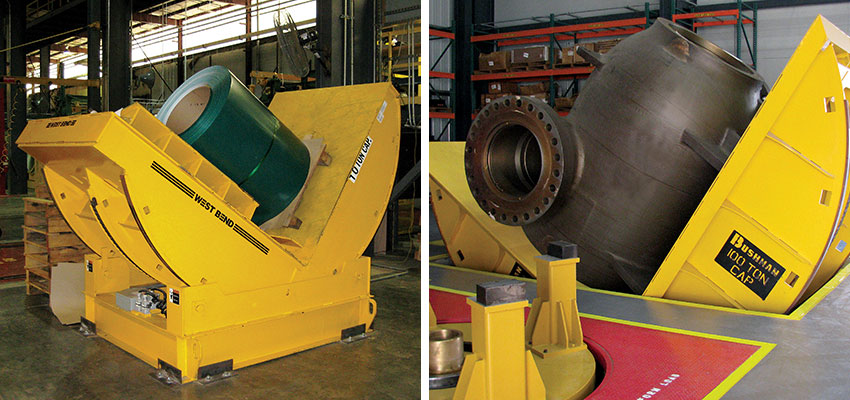

Steel mill upenders tip coils for an annealing process.

mechanical upender

Note T-slots for tie-down of load.

These upenders tip plastic injection molds for clean out and maintenance.

Mechanical Upender

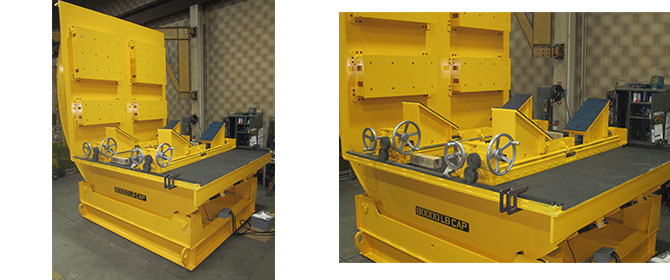

This upender is used for specialized machine assembly. It has manually adjustable V-saddles.

Mechanical Upender

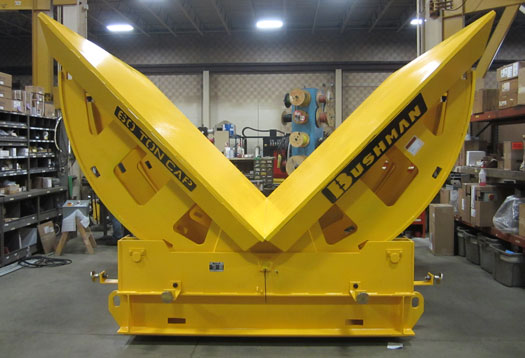

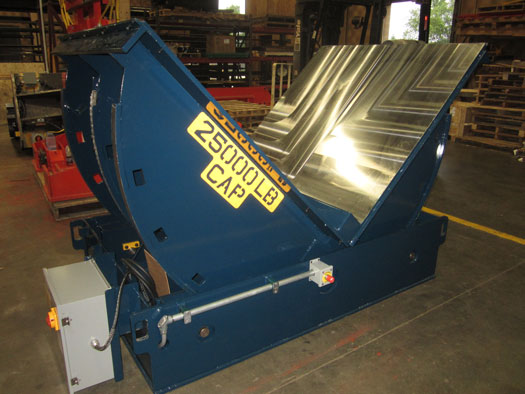

25,000 lb capacity upender with machined loading platform.

Mechanical Upender

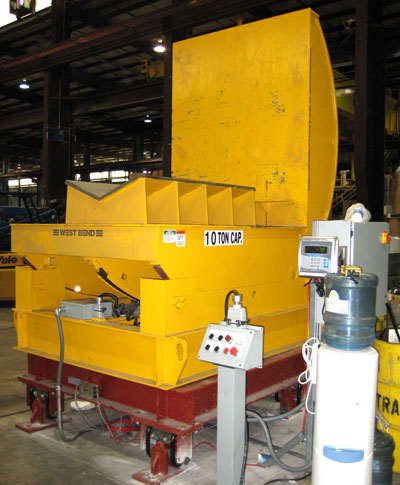

10 metric ton coil upender, pit mounted, with a motorized V-saddle & motorized pallet adjuster.

Mechanical Upender

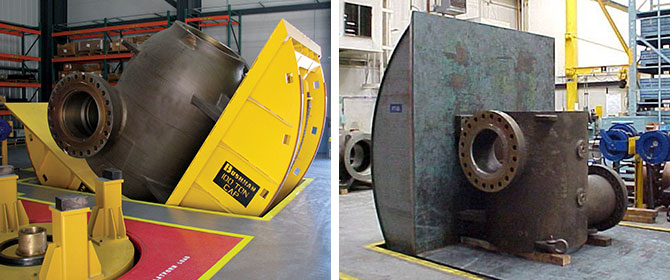

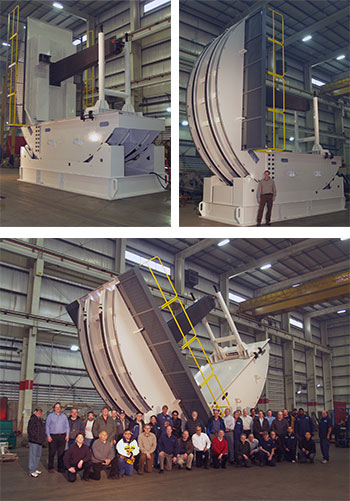

80 metric ton upender holds utility transformer coils on a cantilevered arm.
